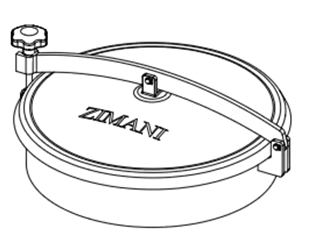

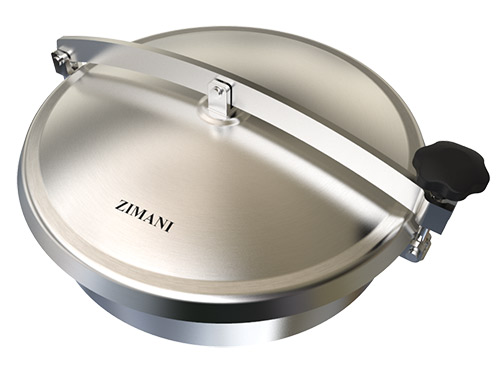

Non-Pressure Stainless Steel Round Manways NPDC 7011

Overview




Standard Design
  • American 3-A Sanitary Standard Certified (84-02)
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicone-gasket
  • Plastic handle
  • Outward-open
  • Surface matte-finish
  • OD 600mm
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sand blasting, etc.
  • Various handles: Stainless steel, etc.
  • Various gasket qualities
  • Neck thickness can be modified
  • Height can be modified
  • OD optional for219/300/350/400/430/450/500
  • Gasket material optional for EPDM, FPM



  • Specs

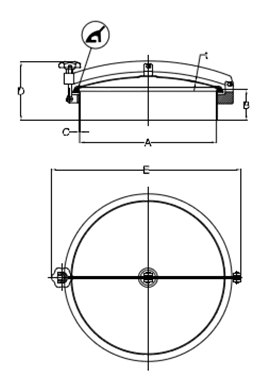

    STANDARD SIZE /* At temperature 50℃/122℉

    CODE A OD×C B T P.MAX
    mm mm mm mm bar
    7011 219 214 219×3.0 100 2.0 0.2
    7011 300 294 300×3.0 100 2.5 0.18
    7011 350 344 350×3.0 100 2.5 0.15
    7011 400 394 400×3.0 100 2.5 0.12
    7011 430 424 430×3.0 100 2.5 0.1
    7011 450 444 450×3.0 100 2.5 0.1
    7011 500 494 500×3.0 100 2.5 0
    7011 600 594 600×3.0 100 2.5 0


    GASKET

    Part No. Material Color
    7010 01 1 Silicone White
    7010 01 2 EPDM Black
    7010 01 3 FPM Black

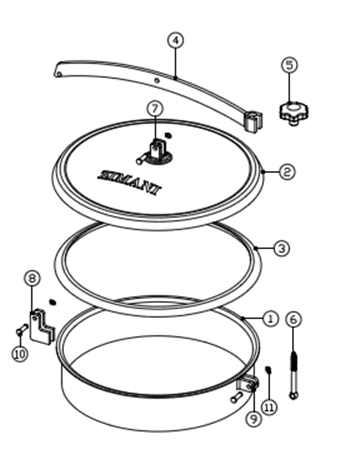

    Item Description Material Qty
    1 Frame 1.4301/1.4404 1
    2 Cover 1.4301/1.4404 1
    3 Gasket Silicone 1
    4 Bracket T304 1
    5 Handle Plastic/T304 1
    6 Swing bolt T304 1
    7 Up hinge Support T304 1
    8 Back hinge Support T304 1
    9 Front hinge Support T304 1
    10 Pin T304 3
    11 Lock ring T304 3

    Stainless Steel Finishes
    POLISHED WITH RA (μ)
    BEAD BLASTED
    PICKLED : ON REQUEST
    ELECTRO POLISHED

    Cover & Frame Range
    Cover Thickness Frame/Neck Height
    2.0mm 85mm (3.35”)
    2.5mm 100mm (3.94”)
    3.0mm 120mm (4.72”)
    150mm (5.91”)
    200mm (7.76”)
    250mm (9.85”)
