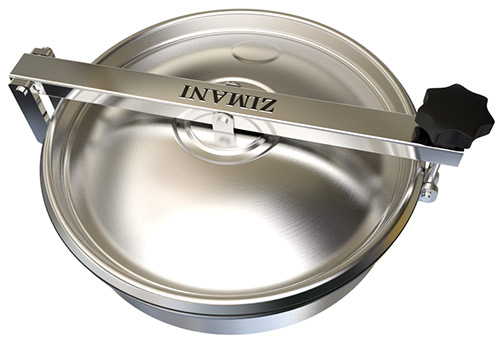

Non-pressure Sanitary Round Manlids CNPC 7014

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicone-gasket
  • Plastic handle
  • Outward-open
  • Surface matte-finish
  • OD 600mm
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Various handles: Stainless steel, etc.
  • Various gasket qualities
  • Neck thickness can be modified
  • Height can be modified
  • OD optional for 350/400/430/450/500
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A OD×C B T P.MAX
    mm mm mm mm bar
    7014 350 346 350×2.0 85 2.0 0.15
    7014 400 396 400×2.0 85 2.0 0.12
    7014 430 426 430×2.0 85 2.0 0.11
    7014 450 446 450×2.0 85 2.0 0.07
    7014 500 496 500×2.0 85 2.0 0.05
    7014 600 596 600×2.0 85 2.0 0
    IF YOU WANT TO CHECK FOR MORE DETAILS

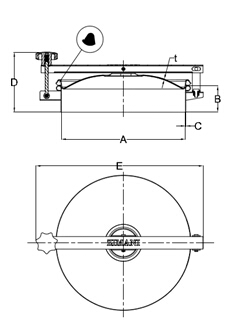

    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA


    CNPC Parts drawing
    GASKET
    Part No. Material Color
    7010 03 1 Silicone White
    7010 03 2 EPDM Black
    7010 03 3 FPM Black

    Item Description Material Qty
    1 Frame 1.4301/1.4404 1
    2 Cover 1.4301/1.4404 1
    3 Gasket Silicone 1
    4 Bracket T304 1
    5 Handle Plastic/T304 1
    6 Swing bolt T304 1
    7 Pin T304 3
    8 Lock ring T304 3
    9 Back hinge support T304 1
    10 Screw T304 1
    11 Nut T304 1

    CNPC Technology
    TECHNICAL DATA
    Working pressure: . . . . . . . .Acc. to table standard size.
    EN10204. 3.1 certificate
    Options
    Stainless Steel Finishes
    POLISHED WITH RA (μ)
    BEAD BLASTED
    PICKLED : ON REQUEST
    ELECTRO POLISHED

    Cover & Frame Range
    Cover Thickness Frame/Neck Height
    2.0mm 85mm (3.35”)
    2.5mm 100mm (3.94”)
    120mm (4.72”)
    150mm (5.91”)
    200mm (7.76”)
    250mm (9.85”)
    Note: Longer heights are also available.
