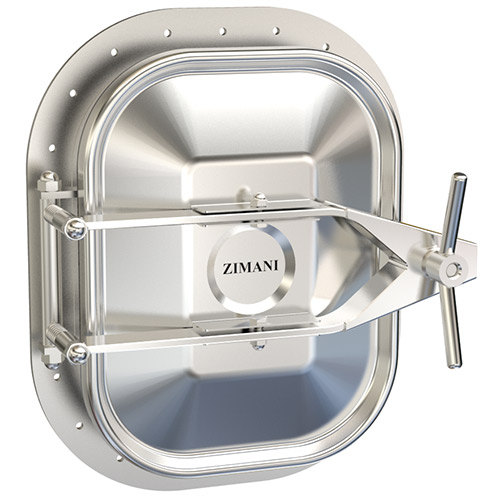

WRE-2 7048 Rectangular Manwaydoor opening outwards

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicon gasket
  • Stainless steel handle
  • Outward-open
  • Surface matte-finish
  • Rectangular spec(mm) 676×476
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Optional for 419×319,519×399
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Various gasket qualities
  • Neck thickness can be modified
  • Height can be modified
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A C B T P.MAX
    mm mm mm mm bar
    7048 435 419×319 8.0 70 3.0 0.6
    7048 535 519×399 8.0 100 3.0 0.25
    7048 700 676×476 12.0 100 4.0 0.1

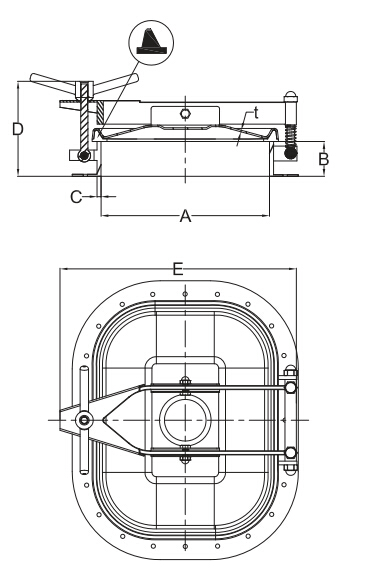

    IF YOU WANT TO CHECK FOR MORE DETAILS
    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA
