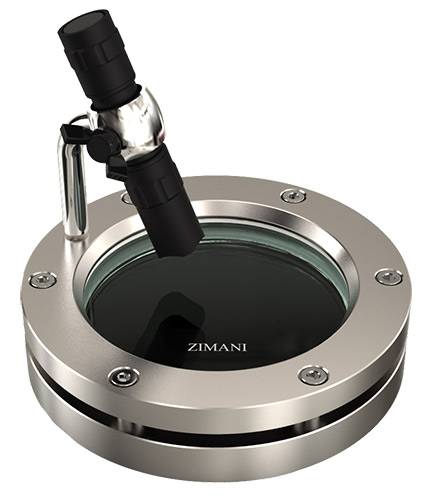

LSESG 7009-03 Sight glasess

Overview

Specs

STANDARD SIZE /* At temperature 50℃/122℉
CODE d1 SG D h1 h2 K Tem.MAX Pressure rating (bar)

mm mm mm mm mm mm PN
7009 080 80 95×10 126 10 16 110 130 6
7009 100 100 115×12 146 10 16 130 130 6
7009 150 130 150×15 182 10 16 166 130 6

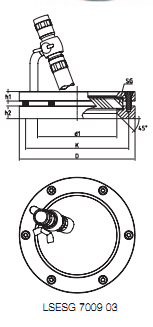

IF YOU WANT TO CHECK FOR MORE DETAILS
PLEASE CHECK THE FOLLOWING DRAWING
*1BAR≈14.5PSI≈0.1MPA

LSESG Parts drawing
GASKET
Part No. Material Color
7009 03 1 PTFE White
7010 03 2 EPDM Black
7010 03 3 FPM Black

Item Description Material Qty
1 Welding flange 1.4301/1.4404 1
2 Cover flange 1.4301/1.4404 1
3 Gasket PTFE 2
4 Sight glass disc Tempered 1
5 Screw T304 6

Operating conditions:

These fittings are available for pressure up to 6 bar (depending on size,
higher pressure rating on request). For temperature rating (depending
on material selection) see the following diagram.

LSESG Technology
TECHNICAL DATA
Working pressure: . . . . . . . .Acc. to table standard size.
EN10204. 3.1 certificate
Ordering information:
sight glass wiper SW, size 3, wiper blade PTFE. If a sight glass disc is needed
as well, please specify the following data: - Borosilicate or Tempered glass -
Sight glass disc size (diameter x s) - nominal fittings diameter DN - effective
operating pressure for this vessel - for wiper blades sizes and larger, please
specify the inside diameter of the fitting
