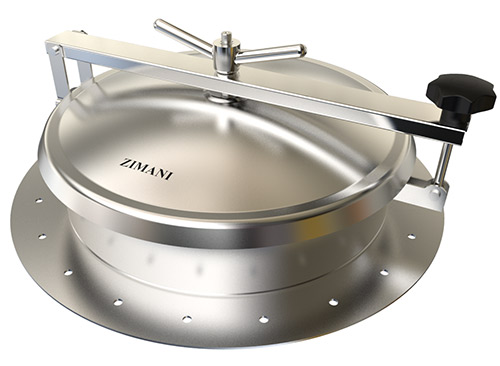

WNPDD 7043 Round manhole cover with back-side opening

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicon gasket
  • Plastic handle
  • Outward-open
  • Surface matte-finish
  • OD 600mm
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Various handles: Stainless steel, etc.
  • Various gasket qualities
  • OD optional for 219/300/350/400/430/450/500
  • Neck thickness can be modified
  • Height can be modified
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A OD×C B T P.MAX
    mm mm mm mm bar
    7043 219 214 219×3.0 100 2.0 0.2
    7043 300 294 300×3.0 100 2.5 0.18
    7043 350 344 350×3.0 100 2.5 0.15
    7043 400 394 400×3.0 100 2.5 0.12
    7043 430 424 430×3.0 100 2.5 0.1
    7043 450 444 450×3.0 100 2.5 0.1
    7043 500 494 500×3.0 100 2.5 0
    7043 600 594 600×3.0 100 2.5 0

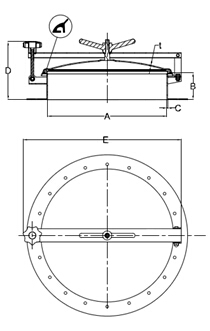

    IF YOU WANT TO CHECK FOR MORE DETAILS
    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA
