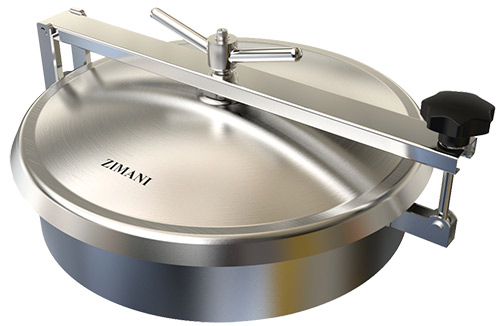

Non-pressure Stainless Steel Round Manlids NPDD 7012

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicone-gasket
  • Plastic handle
  • With cross arm
  • Outward-open
  • Surface matte-finish
  • OD 600mm
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Various handles: Stainless steel, etc.
  • Various gasket qualities
  • Neck thickness can be modified
  • Height can be modified
  • OD optional for 219/300/350/400/430/450/500
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A OD×C B T P.MAX
    mm mm mm mm bar
    7012 219 214 219×3.0 100 2.0 0.2
    7012 300 294 300×3.0 100 2.5 0.18
    7012 350 344 350×3.0 100 2.5 0.15
    7012 400 394 400×3.0 100 2.5 0.12
    7012 430 424 430×3.0 100 2.5 0.1
    7012 450 444 450×3.0 100 2.5 0.1
    7012 500 494 500×3.0 100 2.5 0
    7012 600 594 600×3.0 100 2.5 0
    IF YOU WANT TO CHECK FOR MORE DETAILS

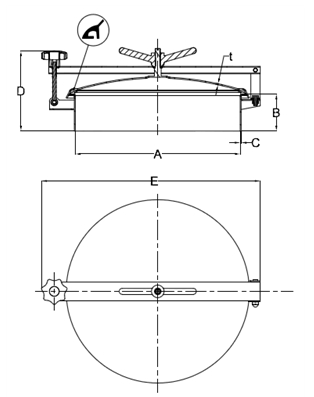

    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA

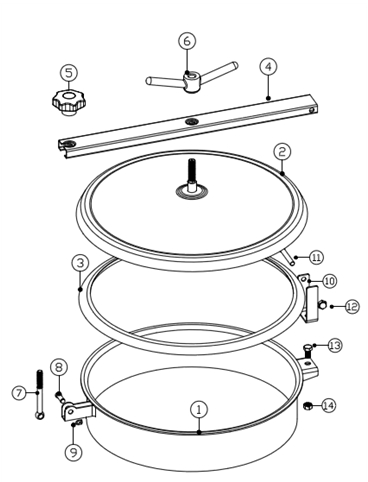

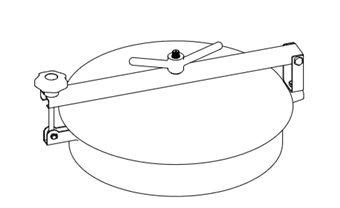

    NPDD Parts drawing
    Part No. Material Color
    7010 01 1 Silicone White
    7010 01 2 EPDM Black
    7010 01 3 FPM Black

    Item Description Material Qty
    1 Frame 1.4301/1.4404 1
    2 Cover 1.4301/1.4404 1
    3 Gasket Silicone 1
    4 Bracket T304 1
    5 Handle Plastic/T304 1
    6 Nut T304 1
    7 Swing bolt T304 1
    8 Pin T304 1
    9 Lock ring T304 1
    10 Back hinge support T304 1
    11 Screw T304 1
    12 Nut T304 1
    13 Screw T304 1
    14 Nut T304 1


    NPDD Technology
    TECHNICAL DATA
    Working pressure: . . . . . . . .Acc. to table standard size.
    EN10204. 3.1 certificate
    Stainless Steel Finishes
    POLISHED WITH RA (μ)
    BEAD BLASTED
    PICKLED : ON REQUEST
    ELECTRO POLISHED

    Cover & Frame Range
    Cover Thickness Frame/Neck Height
    2.0mm 85mm (3.35”)
    2.5mm 100mm (3.94”)
    3.0mm 120mm (4.72”)
    150mm (5.91”)
    200mm (7.76”)
    250mm (9.85”)
    Note: Longer heights are also available.
