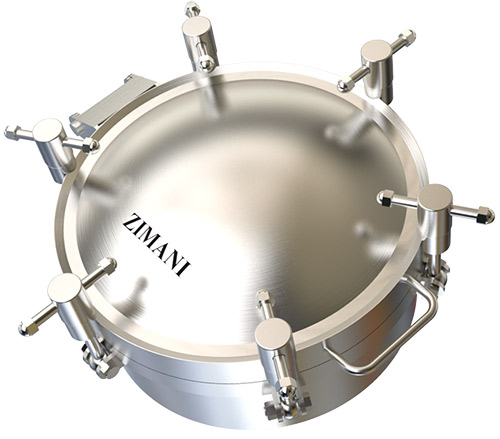

Pressure Round Manways HPSD 7023

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicone-gasket
  • 6 Stainless steel handle
  • Outward-open
  • Surface matte-finish
  • OD 600mm
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Neck thickness can be modified
  • Height can be modified
  • OD optional for 200/300/350/400/430/450
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A OD×C BOLTS B T P.MAX
    mm mm mm mm mm bar
    7023 200 200 208×4.0 4 100 3.5 8.0
    7023 300 300 308×4.0 4/6 100 3.5 7.0
    7023 350 350 358×4.0 4/6 100 3.5 6.0
    7023 400 400 408×4.0 4/6/8 100 3.5 5.5
    7023 430 430 438×4.0 4/6/8 100 3.5 5.5
    7023 450 450 458×4.0 6/8/10 100 3.0 5.0
    7023 500 500 510×5.0 6/8/10 100 4.0 4.5
    IF YOU WANT TO CHECK FOR MORE DETAILS

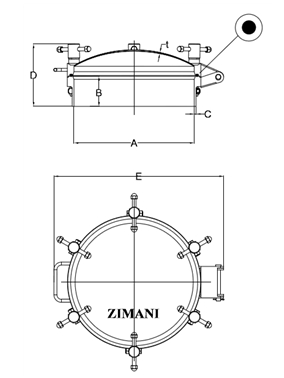

    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA

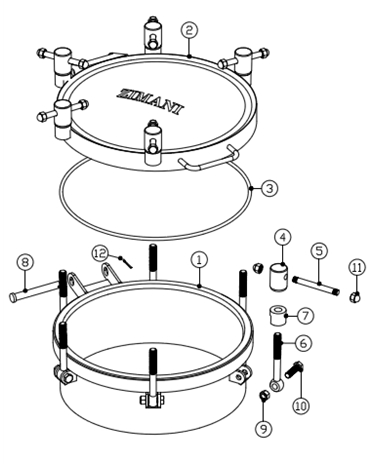

    HPSD Parts drawing
    GASKET
    Part No. Material Color
    7010 09 1 Silicone White
    7010 09 2 EPDM Black
    7010 09 3 FPM Black

    Item Description Material Qty
    1 Frame 1.4301/1.4404 1
    2 Cover 1.4301/1.4404 1
    3 Gasket Silicone 1
    4 Handle part T304 6
    5 Screw T304 6
    6 Swing bolt T304 6
    7 Hub T304 6
    8 Pin T304 1
    9 Nut T304 6
    10 Screw T304 6
    11 Nut T304 12
    12 Cotter Pin T304 1

    HPSD Technology
    TECHNICAL DATA
    Working pressure: . . . . . . . .Acc. to table standard size.
    EN10204. 3.1 certificate
    Options
    Stainless Steel Finishes
    POLISHED WITH RA (μ)
    BEAD BLASTED
    PICKLED : ON REQUEST
    ELECTRO POLISHED

    Cover & Frame Range
    Cover Thickness Frame/Neck Height
    3.0mm 85mm (3.35”)
    3.5mm 100mm (3.94”)
    4.0mm 120mm (4.72”)
    150mm (5.91”)
    200mm (7.76”)
    250mm (9.85”)
    Note: Longer heights are also available.
