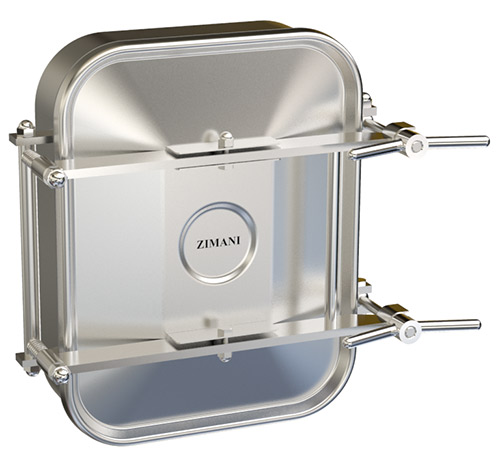

Stainless Steel Rectangular Manway RE 7037

Overview




Standard Design
  • Wetted material 1.4301/1.4404
  • Cover material 1.4301/1.4404
  • Silicon gasket
  • Stainless steel handle
  • Outward-open
  • Surface matte-finish
  • Rectangular spec(mm) 225×175
  • Full welding technology

    Options
  • Optional wetted materials 304,316,316L
  • Various surface qualities 0.4μm-0.8μm
  • Various surface finish: Mirror Polish, Sandblasted, etc.
  • Optional spec (mm)419×319, 519×399
  • Neck thickness can be modified
  • Height can be modified
  • Gasket material optional for EPDM, FPM



  • Specs

    STANDARD SIZE /* At temperature 50℃/122℉
    CODE A C B T P.MAX
    mm mm mm mm bar
    7037 435 419×319 8.0 100 3.0 0.7
    7037 535 519×399 8.0 100 3.0 0.3
    7037 700 676×476 12.0 100 4.0 0.1

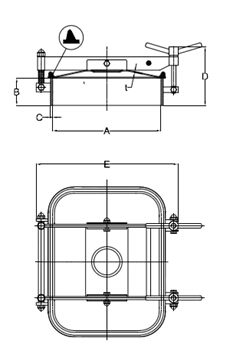

    IF YOU WANT TO CHECK FOR MORE DETAILS
    PLEASE CHECK THE FOLLOWING DRAWING
    *1BAR≈14.5PSI≈0.1MPA

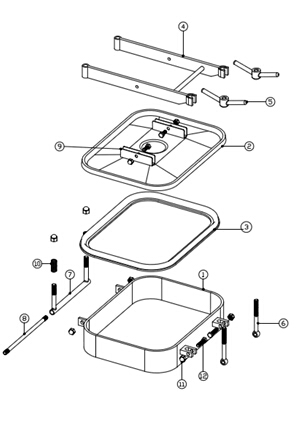

    RE Parts drawing
    GASKET
    Part No. Material Color
    7010 08 1 Silicone White
    7010 08 2 EPDM Black
    7010 08 3 FPM Black

    Item Description Material Qty
    1 Frame 1.4301/1.4404 1
    2 Cover 1.4301/1.4404 1
    3 Gasket Silicone 1
    4 Bracket T304 1
    5 Top Nut T304 2
    6 Swing bolt T304 2
    7 Screw T304 1
    8 Screw T304 1
    9 Up hinge support T304 2
    10 Spring T304 2
    11 Nut T304 8
    12 Screw T304 4

    RE Technology
    TECHNICAL DATA
    Working pressure: . . . . . . . .Acc. to table standard size.
    EN10204. 3.1 certificate
    Options
    Stainless Steel Finishes
    POLISHED WITH RA (μ)
    BEAD BLASTED
    PICKLED : ON REQUEST
    ELECTRO POLISHED

    Cover & Frame Range
    Cover Thickness Frame/Neck Height
    2.0mm 70mm (2.75”)
    2.5mm 100mm (3.94”)
    3.0mm 120mm (4.72”)
    Note: Longer heights are also available.
